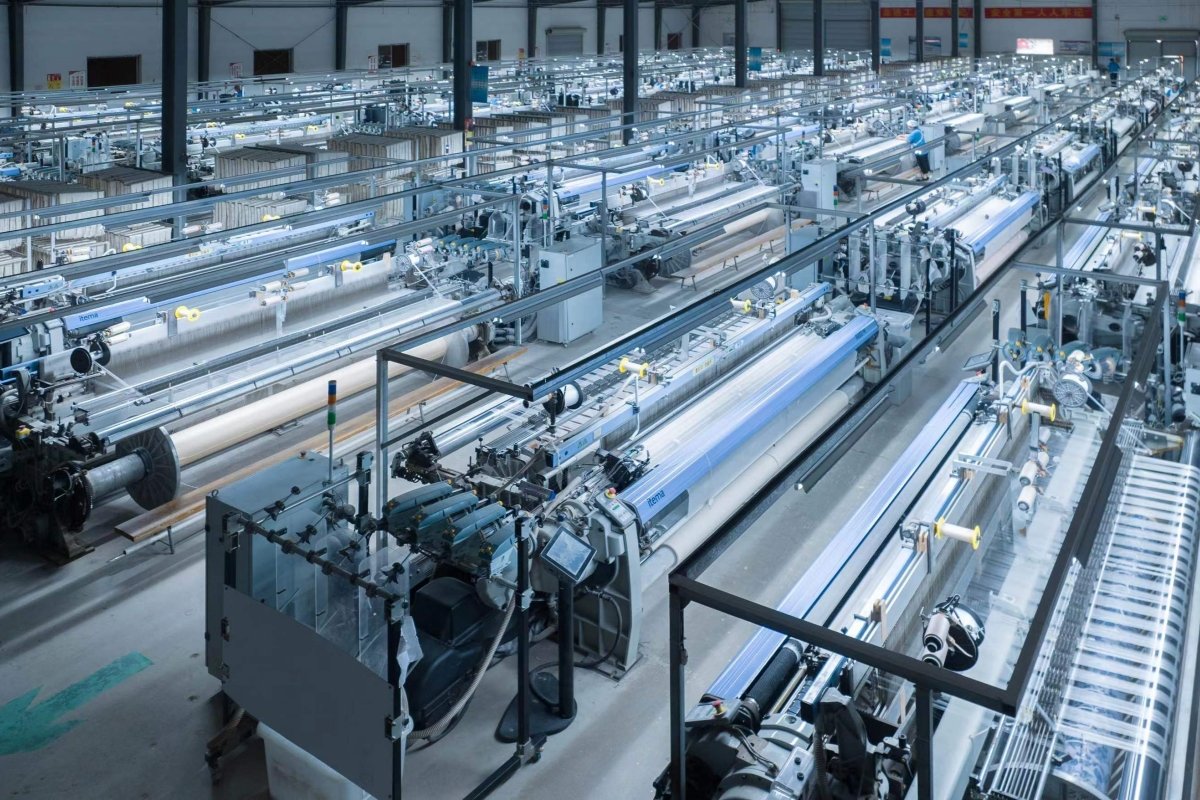

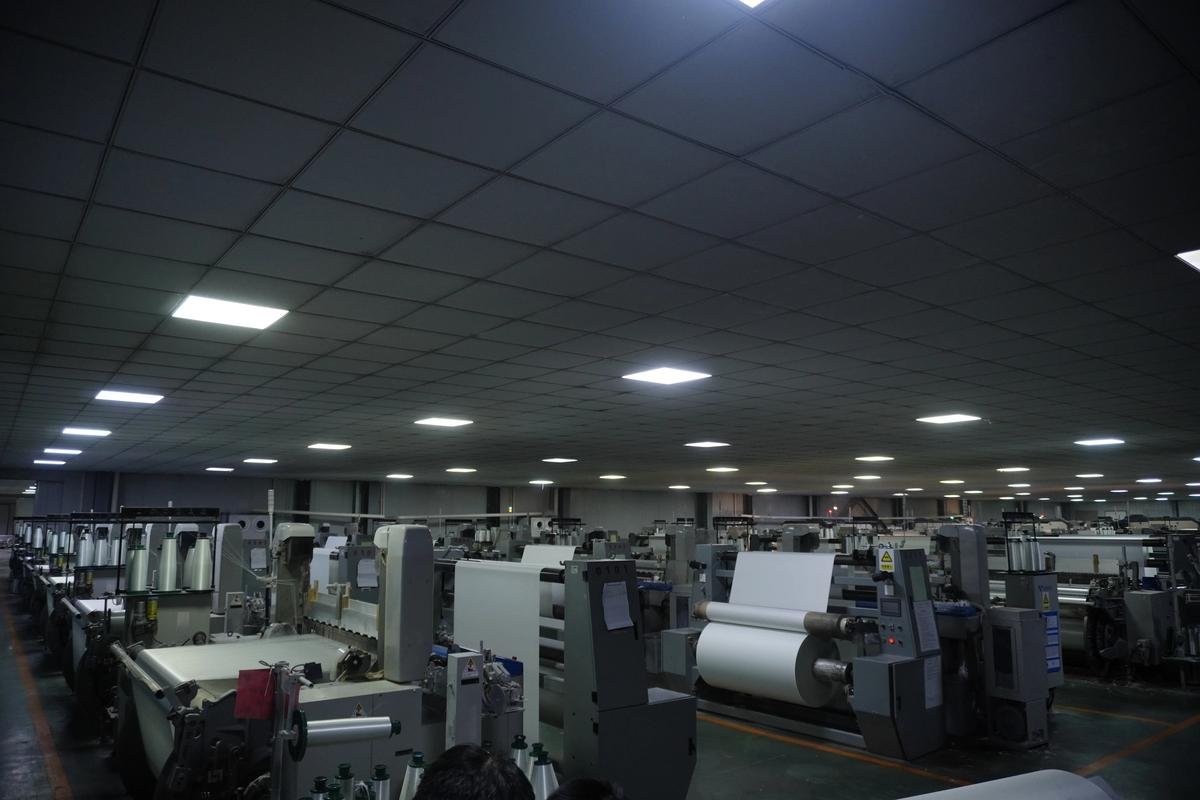

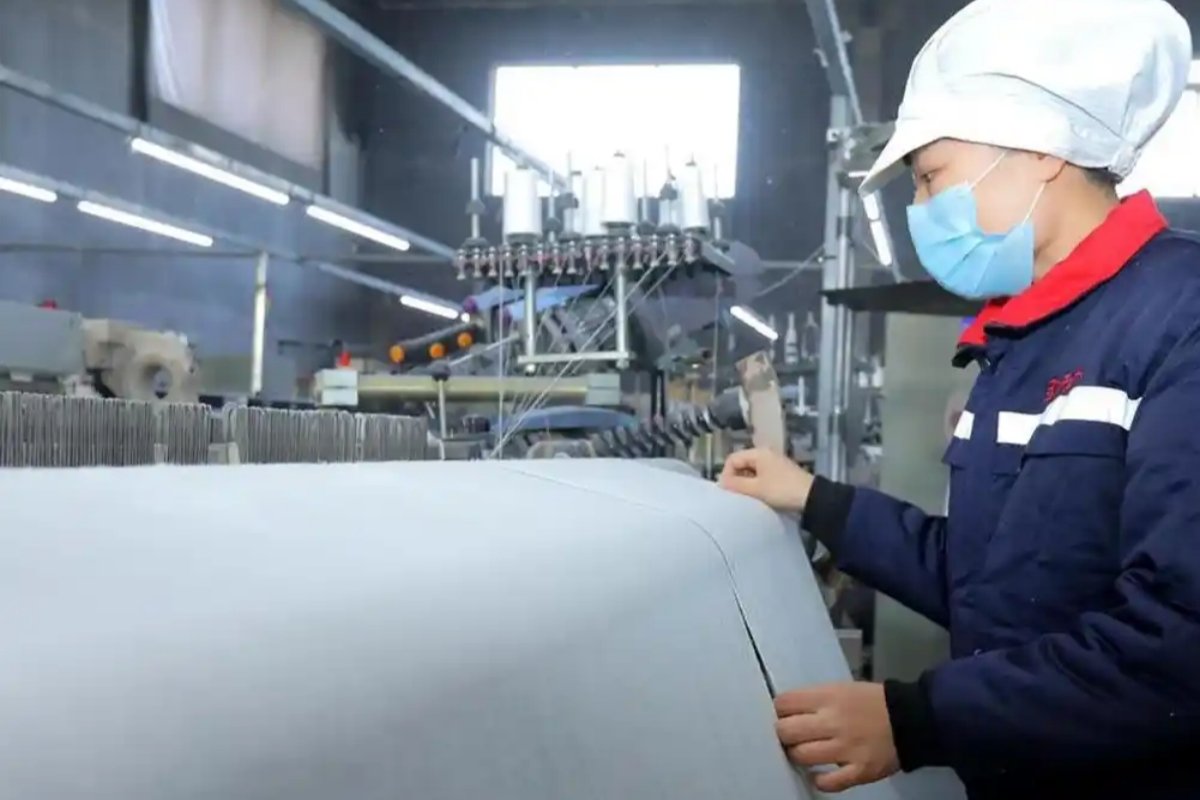

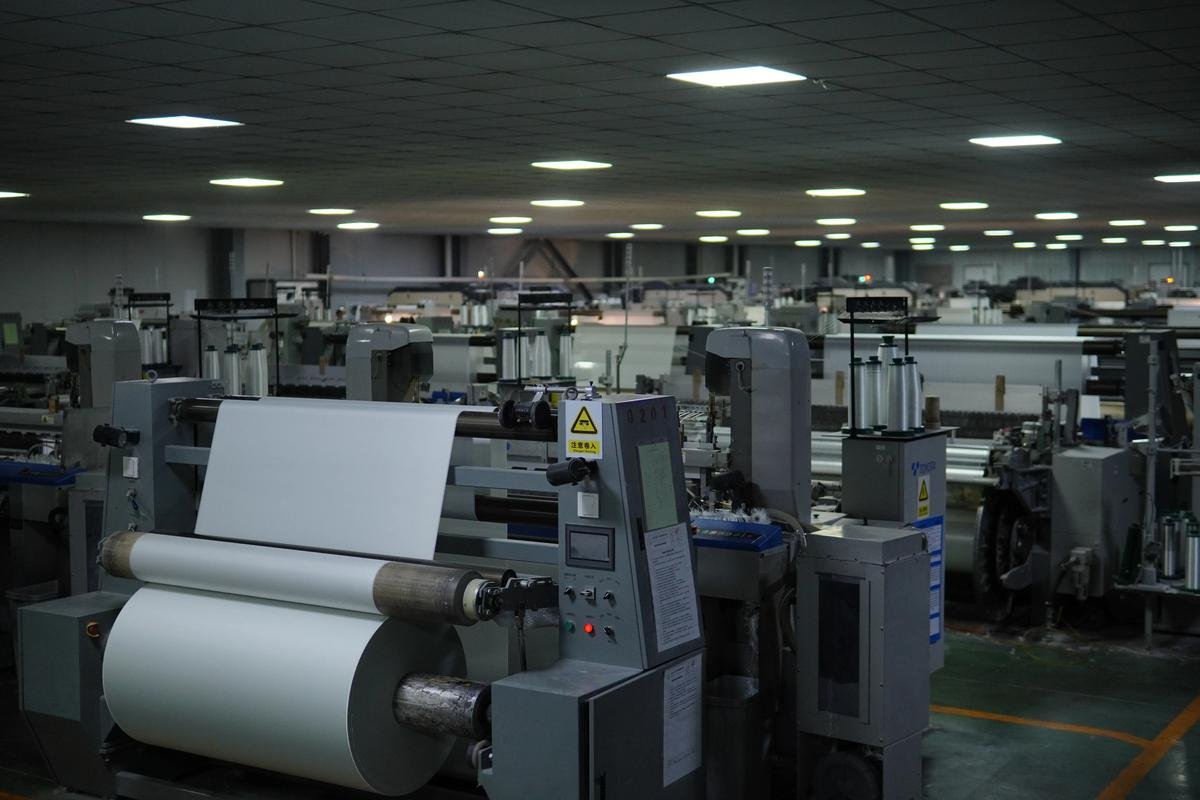

The factory equipment is the familiar rapier loom. Diverse, high-quality weaving solutions are the key equipment for achieving product innovation and value enhancement.

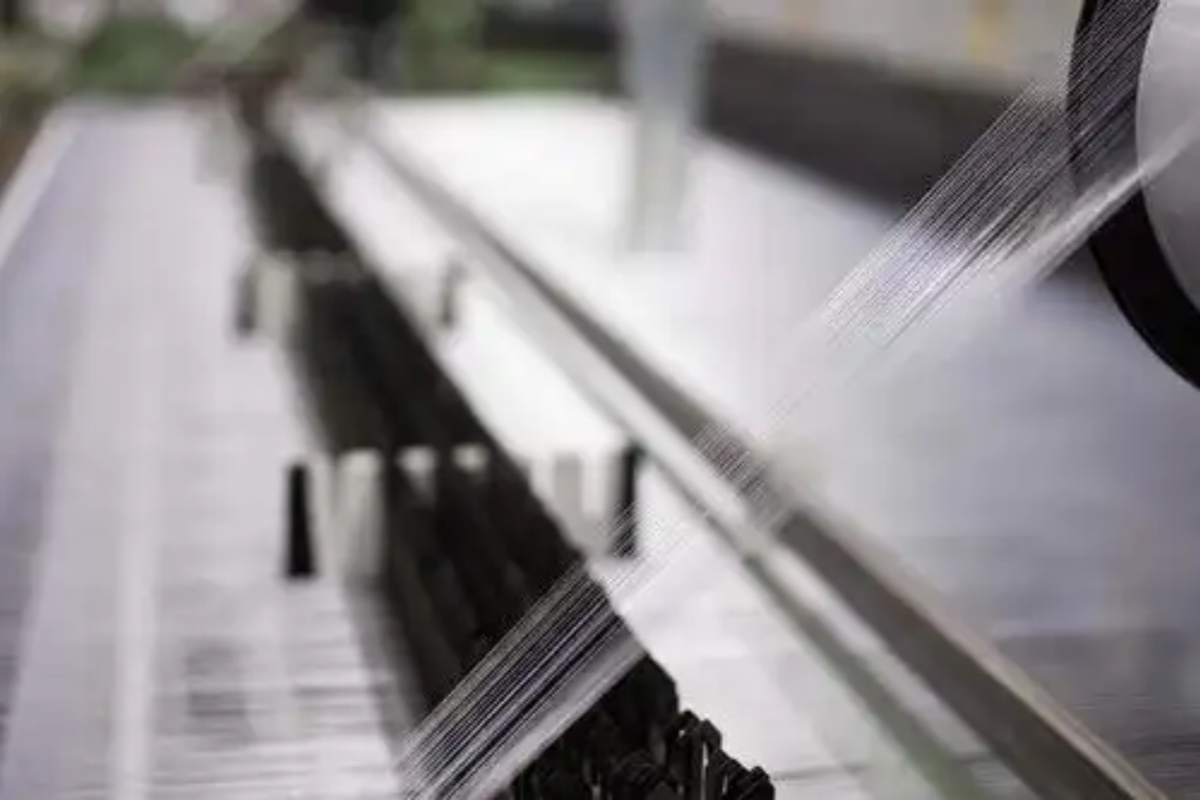

The rapier loom uses two (or one) rigid or flexible “rapiers” and their “rapier heads” to perform weft insertion. The weft-feeding rapier on one side grips the weft yarn and feeds it into the shed from one side of the loom. At the center of the shed, it meets the weft-receiving rapier on the opposite side, completing the weft yarn transfer. The weft-receiving rapier then pulls the weft yarn out of the shed, concluding one weft insertion cycle.
Key Features:
1. Exceptional Material Adaptability: From ultra-fine, delicate Tencel, silk, and scarves to coarse jute, fiberglass, and metallic yarns, the rapier loom handles them all with ease. It exhibits the lowest yarn wear among all shuttleless looms.
2. Exceptional Pattern Capability: Easily configures 8-color, 16-color, or even more-color weft selection systems, making it ideal for weaving complex patterns in yarn-dyed fabrics, plaids, and jacquards.
3. Superior Selvedge Quality: Utilizing a gripping weft insertion system, the weft yarn remains under constant control, forming a complete, robust selvedge (raw edge). This eliminates the need for additional selvedge devices required by air-jet/water-jet looms, resulting in high-quality selvedges and minimal waste.
4. Wide-width Weaving Capability: Easily produces extra-wide fabrics (e.g., 360cm, 460cm+, etc.), a capability unmatched by other looms.
5. High Stability: Features responsive and reliable mechanical actions, with less stringent requirements for workshop environmental conditions (temperature and humidity) compared to air-jet looms.
